Samuel Müeller SMBBC36-RTA-FR02-GR Framington 27-in x 24-in x 35-in Ready To Assemble Latitude Blind Base Cabinet, Green

Sale

Make a Selection

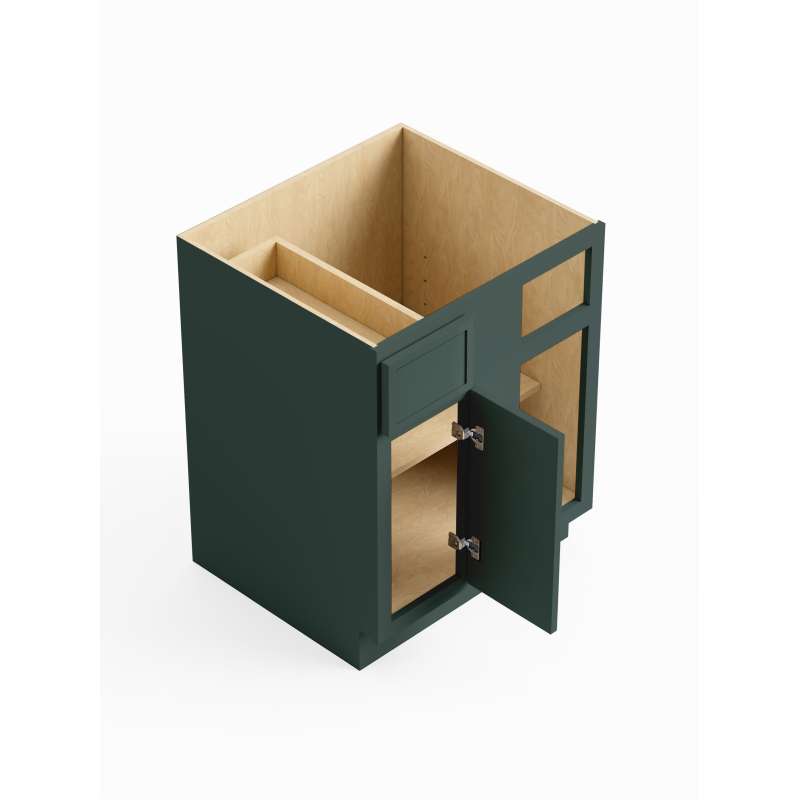

Framed blind base cabinet with (1) door, (1) drawer, and (1) full depth shelf
27-in W x 24-in D x 34.5-in H
Full overlay door and drawer front in the Shaker style
Green painted exterior with UV coating and a UV coated natural plywood interior
0.5-in thick plywood cabinet box; face frame is 1.5-in W and 0.75-in thick solid birch
Five-piece door with 3-in W and 0.75-in thick solid birch frame and 0.25-in thick MDF center panel
Five-piece drawer front with 3-in W and 0.75-in thick solid birch frame and 0.5-in thick MDF center panel; drawer box is 0.625-in thick rubber wood with dovetail construction
Adjustable 0.75-in thick plywood shelf with front edge banding and clear coat finish
Ready-to-Assemble (RTA)
Concealed six-way adjustable European style hinges with soft close features made from zinc-coated steel
Undermount full extension drawer glides with soft close features made from zinc-coated steel
Pull from corner is a minimum of 8-in and a maximum of 15.1875-in with the total installation width from the corner being 35-in to 42.1875-in
9.4375-in center stile
Add the more common 3-in filler or even a 6-in filler during installation to ensure proper door and drawer clearance (filler sold separately)
Comes with a finished toe kick; add a SMTKC toe kick cover to cover up the toe kick gap between two or more cabinets in a run or cover up the gap between the cabinet and a filler (SMTKC sold separately)
5-Year Limited Residential Warranty

Guides & Documents	Spec Sheet Installation PDF
Brand	Samuel Mueller
Cabinet Assembly	Ready-to-Assemble (RTA)
Cabinet Construction	Framed
Cabinet Overlay	Full Overlay
Drawer Profile	Slim Shaker
Product Type	Base Cabinet
Collection	Framington
Color	Green
Width (in)	24
Length (in)	27
Height (in)	34.5
Material	Plywood, Birch Wood, MDF, Rubber Wood
Color/Finish Family	Greens
Weight (lb)	69.74
Warranty	5-Year Limited Residential
Ada Compliant	No
Door Profile	Slim Shaker
Number of Doors	1
Number of Drawers	1
Number of Shelves	1
Series	Green / RTA
Wood Finish	Painted
Wood Species	Birch & Rubber
