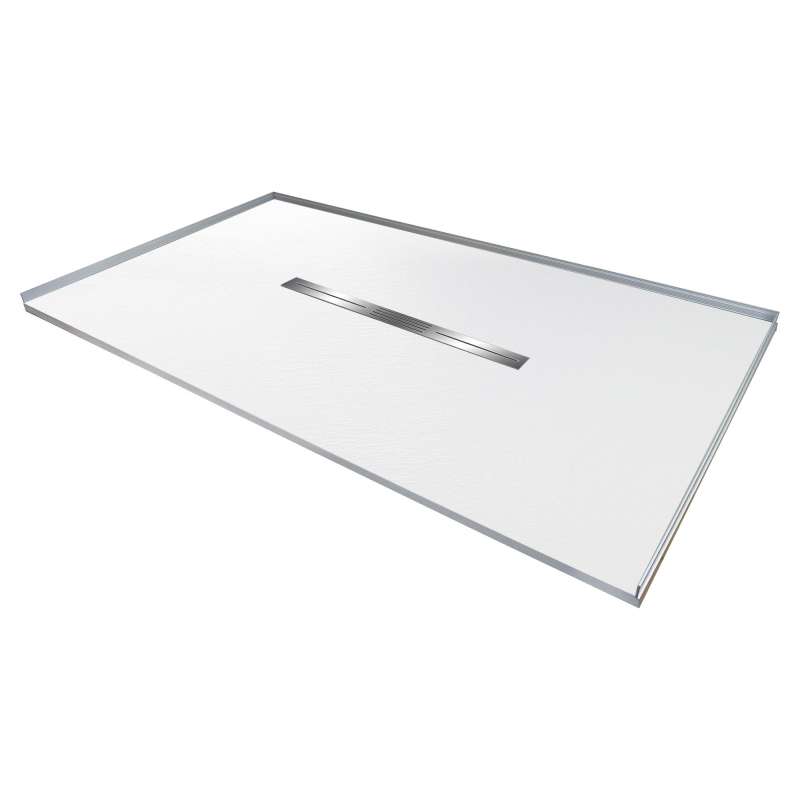

SMFZS6036C-31 Trimslate 60-in x 36-in Zero Threshold Shower Base with Center Drain, White

Sale SMFZS6036C-31 Trimslate 60-in x 36-in Zero Threshold Shower Base with Center Drain, White
  • Model # SMFZS6036C-31
Make a Selection
  • SMFZS6036C-09 Trimslate 60-in x 36-in Zero Threshold Shower Base with Center Drain, Black Black
  • SMFZS6036C-32 Trimslate 60-in x 36-in Zero Threshold Shower Base with Center Drain, Cameo Cameo
  • SMFZS6036C-40 Trimslate 60-in x 36-in Zero Threshold Shower Base with Center Drain, Dark Grey Dark Grey
  • SMFZS6036C-31 Trimslate 60-in x 36-in Zero Threshold Shower Base with Center Drain, White White

Experience the ultimate shower solution with zero threshold shower bases. Crafted from solid sheet-molded compound material with sturdy structural ribs, it ensures durability and stability. Field trimmable for customization. Install with thinset mortar for a reliable, water-tight foundation. With a slip-resistant slate finish, it's perfect for easy entry and flush shower floor aesthetics. Compatible with single, double, or triple threshold installations, it offers versatility for any bathroom.

  • ZERO THRESHOLD: shower floor creates a virtually flush entry to the shower; actual threshold measurement is 1-in but when installed, the difference against flooring is approximately 1/8-in
  • TRIMMABLE: trim up to 4-in in width away from either side of drain or up to 2-in in depth away from drain without any loss of integrity
  • MATERIAL: sheet molding compound (SMC) material is made from a composite material composed of resin, fiberglass, and stone filler to create a lightweight and durable material that is stronger than acrylic
  • 3-IN-1 THRESHOLD: versatile base can accommodate a single, double or triple threshold installation
  • DRAIN: center drain location with modern rectangular stainless steel drain cover that conceals a conventional 2-in shower drain, creating a pleasing uniform and minimalist design; drain not included
  • WATERPROOF: includes three 1-in high aluminum tiling flanges which can be attached to the shower base using epoxy or 100% silicone to ensure no water will sneak in the cracks between your shower base and walls
  • INSTALLATION: install atop a thinset mortar mix; once the base is level and drain is installed, install your wall substrate material 1/4-in above the aluminum flanges and install the shower walls on top of the base with added silicone
  • STRENGTH AND DURABILITY: solid material all the way throughout the base, which is beneficial for protection against scratches, nicks and gouges; has 4 times the impact resistance and 2.5 times the temperature resistance as other bases
  • SUPPORTIVE FOUNDATION: the back side of the base employs structural ribbing to easily achieve a perfectly level base while maintaining superb strength
  • SAFETY: lightly textured slate floor is slip-resistant and maintains an easy-to-clean surface
  • OPTIONAL THRESHOLD: Modify your bathing experience to suit your own taste by adding a threshold to form a conventional base (sold separately - model T60 and T80)
  • WARRANTY: covered by a hassle-free 10-year limited residential or 3-year commercial warranty
Guides & Documents Spec Sheet
Installation PDF
Brand Samuel Mueller
Front To Back Dimension (in) 33 to 40
Left To Right Dimension (in) 59 to 61
Product Type Shower Base
Collection Trimslate
Color White
Width (in) 35.5
Length (in) 59.1
Height (in) 2
Material SMC (Sheet Molding Compound)
Shape Rectangular
Color/Finish Family Whites
Weight (lb) 45
Warranty 10 Year Limited Residential / 3 Year Limited Commercial
Ada Compliant No
Configuration Center
Drain Assembly Included No
Drain Location Center
Drain Size (in) 2
Installation Alcove, Corner, or Peninsula
Integrated Seat No
Residential/Commercial Residential and Commercial
Threshold Zero
Threshold Height (in) 1
