Samuel Müeller SMO338424-ASM-FR02-SG Framington 33-in x 24-in x 84-in Assembled Latitude Tall Oven Cabinet, Smokey Grey

Sale

Make a Selection

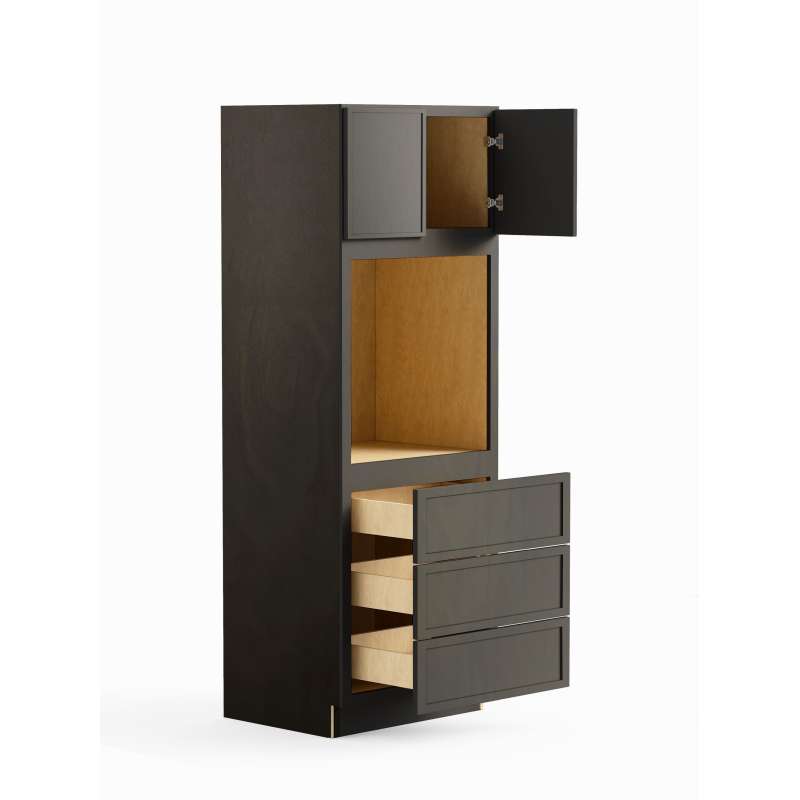

Framed tall oven cabinet with (2) doors and (3) drawers
33-in W x 24-in D x 84-in H
Full overlay doors and drawer fronts in the Slim Shaker style
Smokey Grey stained exterior with UV coating and a UV coated natural plywood interior
0.5-in thick plywood cabinet box; face frame is 1.5-in W and 0.75-in thick solid birch
Five-piece doors with 0.75-in W and 0.75-in thick solid birch frame and 0.25-in thick MDF center panel
Five-piece drawer fronts with 0.75-in W and 0.75-in thick solid birch frame and 0.5-in thick MDF center panel; drawer boxes are 0.625-in thick rubber wood with dovetail construction
Assembled
Concealed six-way adjustable European style hinges with soft close features made from zinc-coated steel
Undermount full extension drawer glides with soft close features made from zinc-coated steel
Oven opening can be modified to accommodate a double oven: height up to 51.75-in (approx.) with removal of drawers and cut down of top rail; width up to 31.5-in (approx.) with cut down of stiles
Comes with a finished toe kick; add a SMTKC toe kick cover to cover up the toe kick gap between two or more cabinets in a run or cover up the gap between the cabinet and a filler (SMTKC sold separately)
5-Year Limited Residential Warranty

Guides & Documents	Spec Sheet Installation PDF
Brand	Samuel Mueller
Cabinet Assembly	Assembled
Cabinet Construction	Framed
Cabinet Overlay	Full Overlay
Drawer Profile	Slim Shaker
Product Type	Tall Oven Cabinet
Collection	Framington
Color	Smokey Grey
Width (in)	24
Length (in)	33
Height (in)	84
Material	Plywood, Birch Wood, MDF, Rubber Wood
Color/Finish Family	Greys
Weight (lb)	232.74
Warranty	5-Year Limited Residential
Ada Compliant	No
Door Profile	Slim Shaker
Number of Doors	2
Number of Drawers	3
Series	Smokey Grey / Assembled
Wood Finish	Stained
Wood Species	Birch & Rubber
