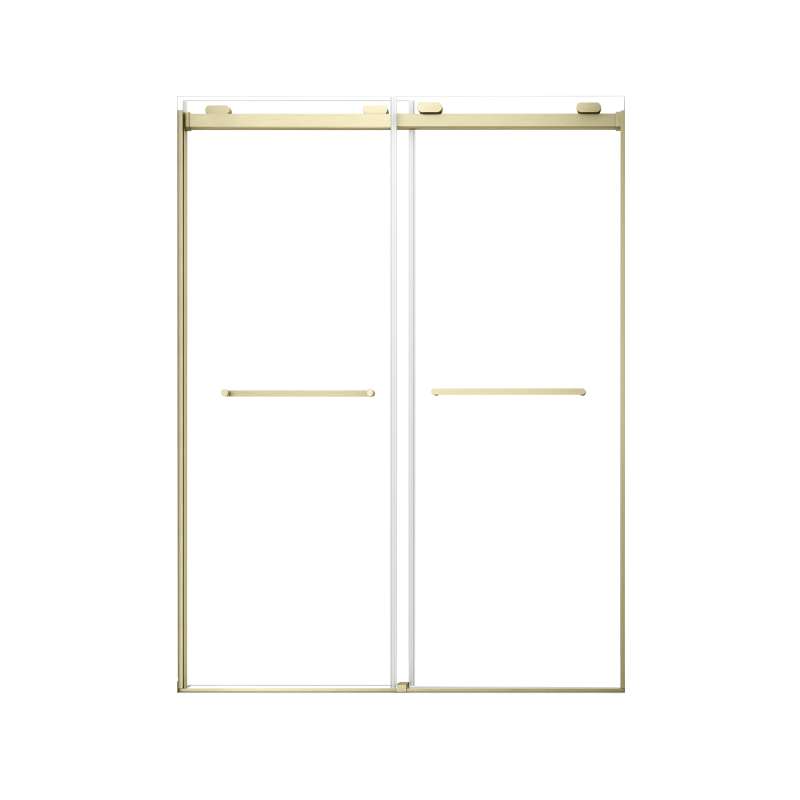

Samuel Müeller SMOBPT608008C-CB Olivia 60-in x 80-in Bypass Shower Door With 5/16-in Clear Glass And Royston Handles, Champagne Bronze

Sale

Make a Selection

58-in to 60-in W x 80-in H bypass shower door for an alcove shower
Features TruMotion technology for easy gliding and quiet sliding door
Quality 5/16-in (8mm) thick tempered clear glass that is ANSI Z97.1 certified
Features special Nano Protected surface treatment that keeps glass looking clean
Optional side wall profiles give up to 1-in out of plumb adjust on each side of the door
Semi-frameless design with frame crafted from 304 stainless steel; exposed zinc alloy rollers with soft-close features and wall bracket
Royston bypass handles complete the look of this door; other handle options are available to purchase separately
Clearance height of 75.875-in
Walk-in opening of 26.625-in minimum to 28.25-in maximum
Door requires a minimum 3.375-in of flat threshold space on the shower base for installation
All reference measurements should be based on a finished opening; professional installation is recommended
Lifetime Limited Residential Warranty / 1-Year Limited Commercial Warranty

Guides & Documents	Spec Sheet Installation PDF
ADA	No
Brand	Samuel Mueller
Glass Thickness (mm)	8
Maximum Width (in)	60
Minimum Width (in)	58
Mounting Style	Track Sliding
Out Of Plumb Adjustment	1-in on each side
Walk-Through Width (in)	26.625 - 28.25
Water-Repellent Coating	Nano ClearCoat Technology
Product Type	Shower Door
Collection	Olivia
Color	Champagne Bronze
Width (in)	60
Length (in)	3.375
Height (in)	80
Material	Glass, 304 Stainless Steel, Zinc Alloy
Color/Finish Family	Bronze Tones
Weight (lb)	120.0000
Warranty	Lifetime Limited Residential; 1-Year Limited Commercial
Door Adjustment	Yes
Door Frame	Semi-Frameless
Door Height (in)	80
Door Opening Height (in)	75.875
Door Type	Bypass
Glass Pattern	Clear
Glass Thickness (in)	0.3125
Handle Type	Royston
Hardware Included	Yes
Installation	Alcove Shower
Maximum Opening Width (in)	60
Maximum Walk-through Width (in)	28.25
Minimum Opening Width (in)	58
Minimum Walk-through Width (in)	26.625
Opening Style	Bypass
Required Base Depth (in)	3.375
Residential/Commercial	Residential and Commercial
Series	Clear / Champagne Bronze
Slow Close	TruMotion®
Towel Bar	No
