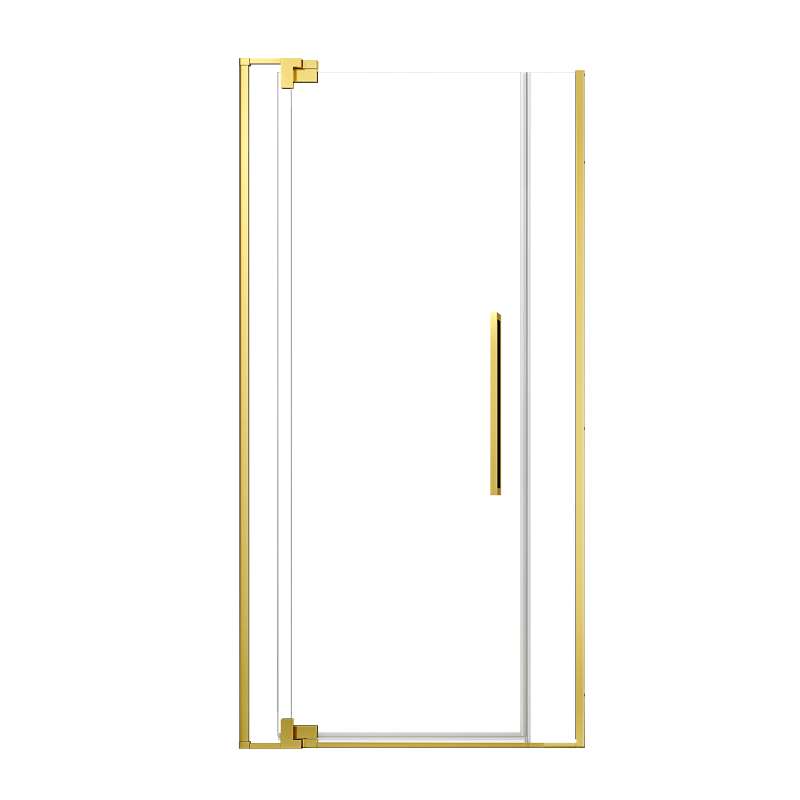

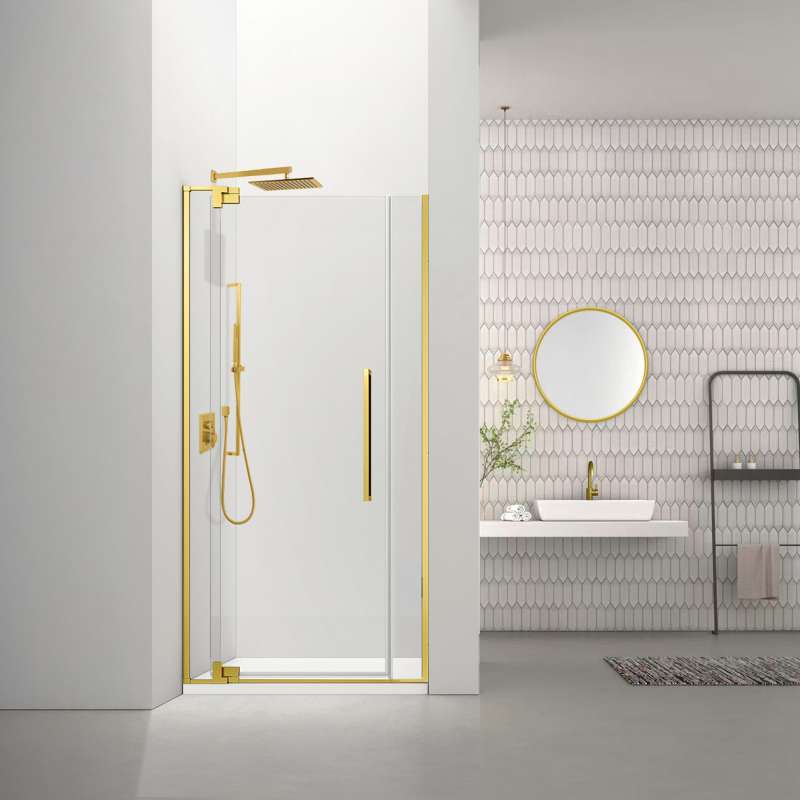

Samuel Müeller SMRDPD4276108C-CB Reverie Duo 42-in x 76-in Pivot Shower Door With 5/16-in Clear Glass And Sampson Double-Sided Handles, Champagne Bronze

Sale

Make a Selection

39-in to 43-in W x 76-in H hinged pivot shower door with fixed panel and inline panel for an alcove shower
Premium quality 3/8-in (10mm) thick tempered clear glass for the fixed/inline panels and 5/16-in (8mm) thick tempered clear glass for the door panel; tempered glass is ANSI Z97.1 certified
Features special Nano Protected surface treatment that keeps glass looking clean
Special design allows up to 3-in width adjustment excluding out of plumb adjustment
Two wall profiles give up to 0.5-in out of plumb adjustment on each side of the door
Self-centering hinges offer a smooth door closure and limit water leakage
Sampson double-sided handles complete the look of this door; other handle options are available to purchase separately
Door and fixed/inline panel are reversible for a left or right door opening
No top heacher eliminates clearance issues while frameless design creates a minimalist look
Walk-in opening of 27.875-in minimum to 30.875-in maximum
Door requires a minimum 1-in of flat threshold space on the shower base for installation
All reference measurements should be based on a finished opening; professional installation is recommended
Lifetime Limited Residential Warranty / 1-Year Limited Commercial Warranty

Guides & Documents	Spec Sheet Installation PDF
ADA	No
Brand	Samuel Mueller
Fixed Panel Width (in)	5.375
Glass Thickness (mm)	8mm Door; 10mm Fixed Panels
Maximum Width (in)	43
Minimum Width (in)	39
Mounting Style	Hinged
Out Of Plumb Adjustment	0.5-in on each side
Walk-Through Width (in)	27.875 - 30.875
Water-Repellent Coating	Nano ClearCoat Technology
Product Type	Shower Door
Collection	Reverie Duo
Color	Champagne Bronze
Width (in)	43
Length (in)	1
Height (in)	76
Material	Glass, 304 Stainless Steel, Brass
Shape	Rectangular
Color/Finish Family	Bronze Tones
Weight (lb)	88.0000
Warranty	Lifetime Limited Residential; 1-Year Limited Commercial
Door Adjustment	Yes
Door Frame	Frameless
Door Height (in)	76
Door Opening Height (in)	76
Door Type	Pivot
Glass Pattern	Clear
Glass Thickness (in)	0.3125-in Door; 0.375-in Fixed Panels
Handle Type	Sampson Double-Sided
Hardware Included	Yes
Installation	Alcove Shower
Maximum Opening Width (in)	43
Maximum Walk-through Width (in)	30.875
Minimum Opening Width (in)	39
Minimum Walk-through Width (in)	27.875
Opening Style	Pivot
Required Base Depth (in)	1
Residential/Commercial	Residential and Commercial
Series	Clear / Champagne Bronze
Slow Close	No
Towel Bar	No
