SMSBP487808C-BS Stratus 48-in x 78-in Bypass Shower Door With 5/16-in Clear Glass And Round Tube Handles, Brushed Stainless

Sale

Make a Selection

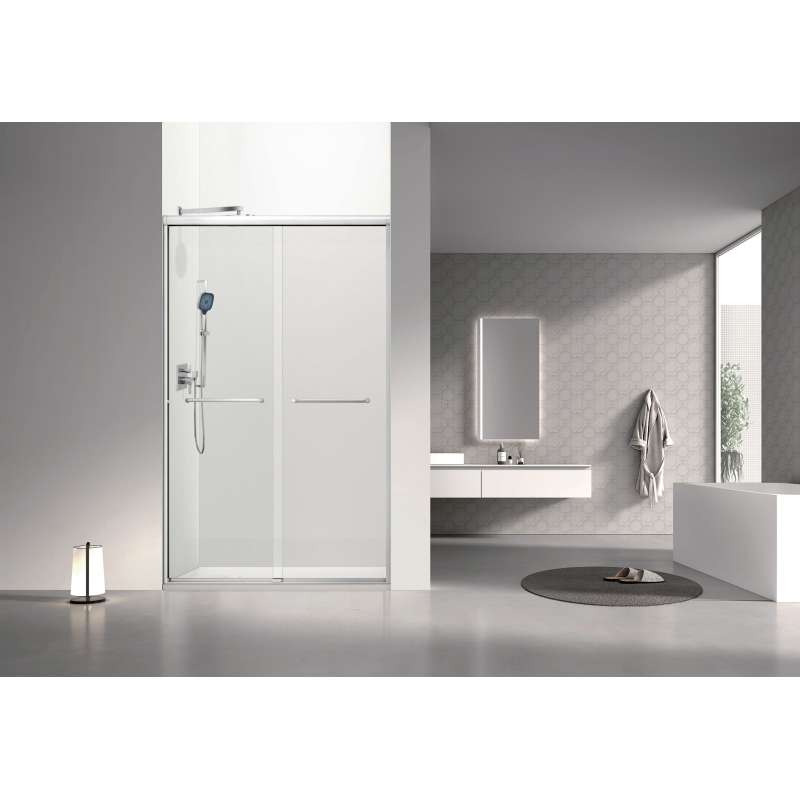

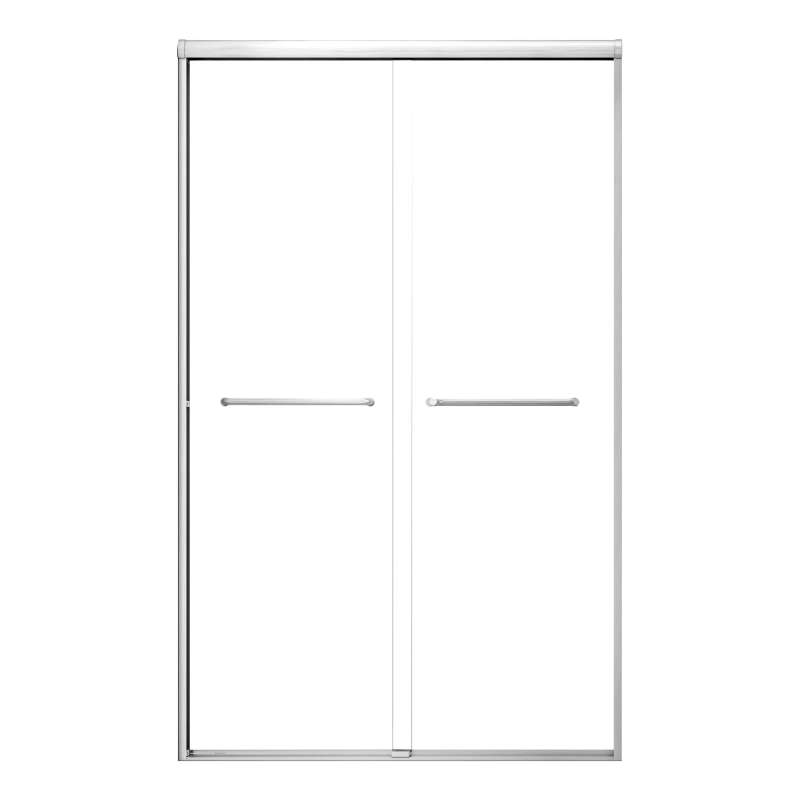

46-in to 48-in W x 78-in H bypass shower door for an alcove shower
Quality 5/16-in (8mm) thick tempered clear glass that is ANSI Z97.1 certified
Features special Nano Protected surface treatment that keeps glass looking clean
Two wall profiles give up to 1-in out of plumb adjustment on each side of the door
Semi-frameless design with frame crafted from aluminum
1-in diameter round tube handles complete the look of this door; other handle options are available to purchase separately
Clearance height of 74.875-in
Walk-in opening of 19.5-in minimum to 21.5-in maximum
Door requires a minimum 2-in of flat threshold space on the shower base for installation
All reference measurements should be based on a finished opening; professional installation is recommended
Lifetime Limited Residential Warranty / 1-Year Limited Commercial Warranty

Guides & Documents	Spec Sheet Installation PDF
ADA	No
Brand	Samuel Mueller
Glass Thickness (mm)	8
Maximum Width (in)	48
Minimum Width (in)	47.5
Mounting Style	Track Sliding
Out Of Plumb Adjustment	0.25-in on each side
Walk-Through Width (in)	21 - 21.5
Water-Repellent Coating	Nano ClearCoat Technology
Product Type	Shower Door
Collection	Stratus
Color	Brushed Stainless
Width (in)	48
Length (in)	2
Height (in)	78
Material	Glass, Aluminum
Shape	Rectangular
Color/Finish Family	Stainless Steel Tones
Weight (lb)	85.0000
Warranty	Lifetime Limited Residential; 1-Year Limited Commercial
Door Adjustment	Yes
Door Frame	Semi-Frameless
Door Height (in)	78
Door Opening Height (in)	74.875
Door Type	Bypass
Glass Pattern	Clear
Glass Thickness (in)	0.3125
Handle Type	Round Tube
Hardware Included	Yes
Installation	Alcove Shower
Maximum Opening Width (in)	48
Maximum Walk-through Width (in)	21.5
Minimum Opening Width (in)	47.5
Minimum Walk-through Width (in)	21
Opening Style	Bypass
Required Base Depth (in)	2
Residential/Commercial	Residential and Commercial
Series	Clear / Brushed Stainless
Slow Close	No
Towel Bar	No
