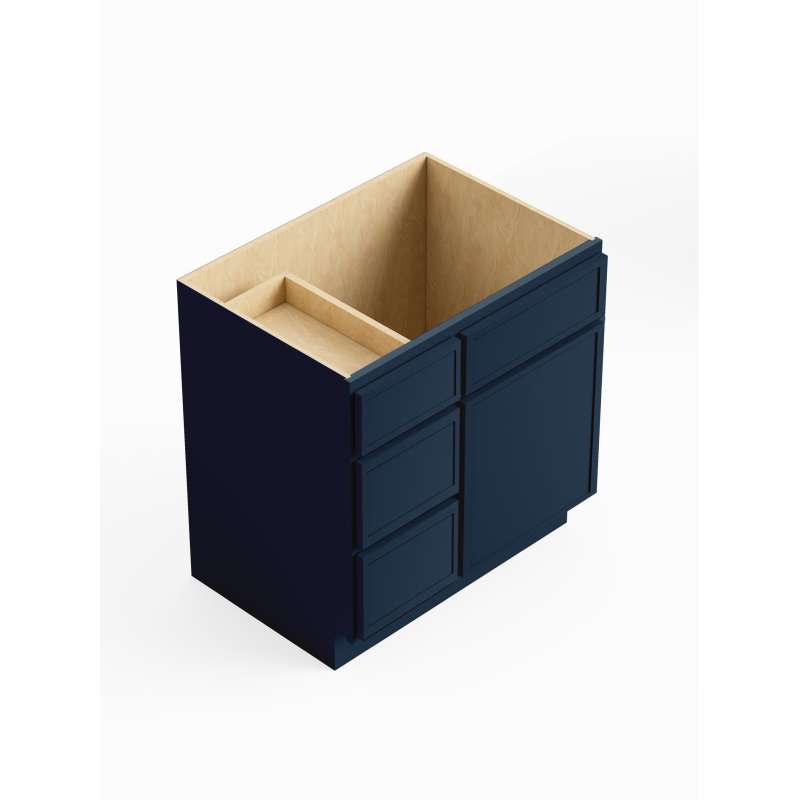

Samuel Müeller SMV3021DL-RTA-FR02-NB Framington 30-in x 21-in x 35-in Ready to Assemble Latitude Vanity Combo Base Cabinet With Three Drawers on Left, Navy Blue

Make a Selection

Framed vanity combo base cabinet with (1) door, (3) drawers, and (1) drawer front; drawers are stacked on the left while door and drawer front are on the right
30-in W x 21-in D x 34.5-in H
Full overlay door and drawer fronts in the Slim Shaker style
Navy Blue painted exterior with UV coating and a UV coated natural plywood interior
0.5-in thick plywood cabinet box; face frame is 1.5-in W and 0.75-in thick solid birch
Five-piece door with 0.75-in W and 0.75-in thick solid birch frame and 0.25-in thick MDF center panel
Five-piece drawer fronts with 0.75-in W and 0.75-in thick solid birch frame and 0.5-in thick MDF center panel; drawer boxes are 0.625-in thick rubber wood with dovetail construction
Ready to Assemble (RTA)
Concealed six-way adjustable European style hinges with soft close features made from zinc-coated steel
Undermount full extension drawer glides with soft close features made from zinc-coated steel
Includes (1) 3/4-in x 3/4-in x 30-in loose filler in solid birch
Comes with a finished toe kick; add a SMTKC toe kick cover to cover up the toe kick gap between two or more cabinets in a run or cover up the gap between the cabinet and filler (SMTKC sold separately)
5-Year Limited Residential Warranty

Guides & Documents	Spec Sheet Installation PDF
Brand	Samuel Mueller
Cabinet Assembly	Ready to Assemble (RTA)
Cabinet Construction	Framed
Cabinet Overlay	Full Overlay
Drawer Profile	Slim Shaker
Product Type	Vanity Base Cabinet
Collection	Framington
Color	Navy Blue
Width (in)	21
Length (in)	30
Height (in)	34.5
Material	Plywood, Birch Wood, MDF, Rubber Wood
Color/Finish Family	Blues
Weight (lb)	86
Warranty	5-Year Limited Residential
Ada Compliant	No
Backsplash Included	No
Door Profile	Slim Shaker
Number of Doors	1
Number of Drawers	3
Series	Navy Blue / RTA
Side Splash Included	No
Sink Included	No
Vanity Top Included	No
Wood Finish	Painted
Wood Species	Birch & Rubber
