SMVS24-RTA-FR02-GR Framington 24-in x 21-in x 35-in Ready to Assemble Latitude Double Door Single Drawer Front Vanity Sink Base Cabinet, Green

SMVS24-RTA-FR02-GR Framington 24-in x 21-in x 35-in Ready to Assemble Latitude Double Door Single Drawer Front Vanity Sink Base Cabinet, Green

Model # SMVS24-RTA-FR02-GR

Make a Selection

Green / RTA
Light Grey / RTA
Navy Blue / RTA
Smokey Grey / RTA
Tan Wood / RTA
White / RTA

Description
Specification

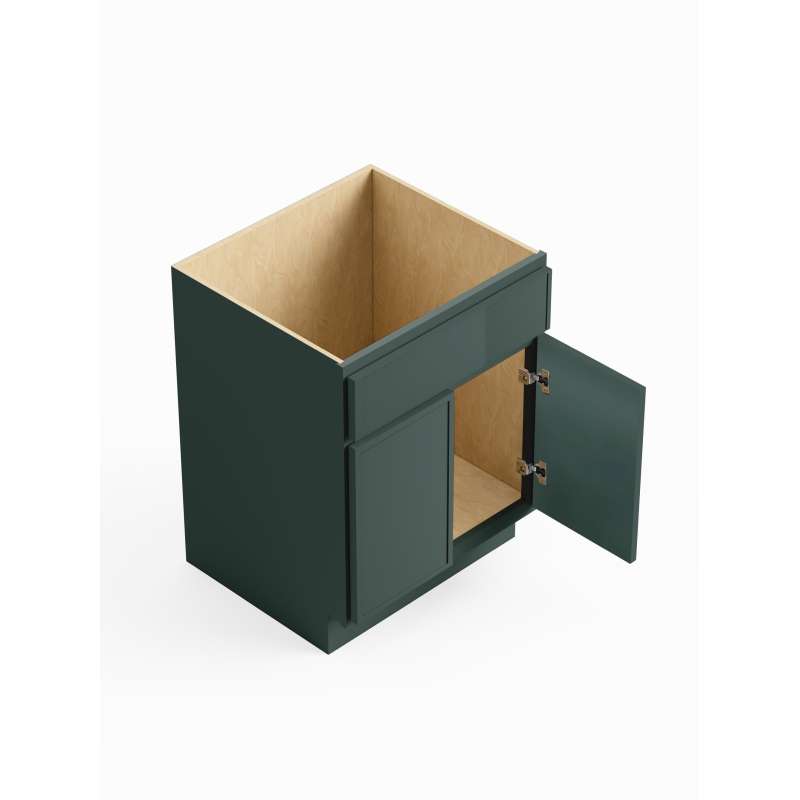

Framed vanity sink base cabinet with (2) doors and (1) drawer front
24-in W x 21-in D x 34.5-in H
Full overlay doors and drawer front in the Slim Shaker style
Green painted exterior with UV coating and a UV coated natural plywood interior
0.5-in thick plywood cabinet box; face frame is 1.5-in W and 0.75-in thick solid birch
Five-piece doors with 0.75-in W and 0.75-in thick solid birch frame and 0.25-in thick MDF center panel
Five-piece drawer front with 0.75-in W and 0.75-in thick solid birch frame and 0.5-in thick MDF center panel
Ready to Assemble (RTA)
Concealed six-way adjustable European style hinges with soft close features made from zinc-coated steel
Includes (1) 3/4-in x 3/4-in x 30-in loose filler in solid birch
Comes with a finished toe kick; add a SMTKC toe kick cover to cover up the toe kick gap between two or more cabinets in a run or cover up the gap between the cabinet and filler (SMTKC sold separately)
5-Year Limited Residential Warranty

Guides & Documents	Spec Sheet Installation PDF
Brand	Samuel Mueller
Cabinet Assembly	Ready to Assemble (RTA)
Cabinet Construction	Framed
Cabinet Overlay	Full Overlay
Drawer Profile	Slim Shaker
Product Type	Vanity Base Cabinet
Collection	Framington
Color	Green
Width (in)	21
Length (in)	24
Height (in)	34.5
Material	Plywood, Birch Wood, MDF
Color/Finish Family	Greens
Weight (lb)	52
Warranty	5-Year Limited Residential
Ada Compliant	No
Backsplash Included	No
Door Profile	Slim Shaker
Number of Doors	2
Series	Green / RTA
Side Splash Included	No
Sink Included	No
Vanity Top Included	No
Wood Finish	Painted
Wood Species	Birch
